Conveying viscous or heavy powders.
TAF5-101WMSCL
Powder Filling System with Screw Conveyor
The screw conveyor powder filling system is an advanced solution for accurately dosing and stably transferring heavy or sticky powders. Ideal for a wide range of materials such as flour, coffee grounds, and cement, it is widely used across food, pharmaceutical, chemical, and construction industries. Powder is evenly delivered via the screw feeder, while the filling unit utilizes weight or rotation-based control to ensure high-precision filling within ±0.5g. The system automates the entire process from dosing to sealing, and all operations can be easily monitored and adjusted through a touchscreen interface.
Dust-Free
Powder Filling & Weighing Technology
Optimized for powder packaging
TEAMPACK’s one-touch auger filling system is ideal for food, pharmaceutical, chemical, and agricultural industries. With automatic sensing, the system monitors powder levels in real time—adjusting filling, refilling, and stopping on its own. Supporting 3–10 cycles per minute, it delivers high-speed, low-labor efficiency for industries seeking clean, precise, and automated powder filling solutions.
High-performance
servo motor
Approx.
3–10 packs/min
Minimizes clumping and
damage of raw materials.
Fully customizable
to client needs
Key Features of the Powder Filling System
1. Rotation Control: High-Performance Motor
Globally Proven Performance
HIGEN Servo Motor
At the heart of TEAMPACK’s powder filling system is a high-precision servo motor that maintains a weighing error within ±0.5g. It precisely controls the set rotation volume, ensuring top-level filling accuracy. With strong torque and fast response speed, it performs rotation, stop, and reverse actions quickly and reliably — even at speeds up to 2,000 RPM. The CPU is directly connected to the servo driver via pulse control, enabling ultra-fast and ultra-accurate execution of input commands based on real-time data processing.
HIGEN Servo Motor
– Stable speed from low to high RPM
– Rated output: 0.3 ~ 5.5 kW
– 200VAC power input
– 1,000 RPM (Max: 2,000 RPM)
– Applications: Robotics, semiconductor equipment, CNC machinery
– Over 150% higher resolution than standard motors
– A/D resolution: 520,000 counts
Rotation Control Unit
Mitsubishi Geared Motor
Equipped with a high-efficiency mixing system, the agitator blades rotate in sync with the servo motor to continuously stir the powder inside the auger filler, preventing clumping and ensuring uniform filling. The industrial-grade Mitsubishi geared motor complies with IE3 energy efficiency standards and offers low noise, high precision, and durability. Its compact, all-in-one design maximizes space efficiency and simplifies maintenance, enabling stable long-term operation and cost savings.
Decimal-Point Level Rotation Control
Precisely adjusts the rotation amount, with real-time monitoring of speed and filling volume via touchscreen. Supports decimal-level rotation settings, offering significantly better productivity and continuity than weight-based methods, and ensures stable filling of high-viscosity materials.
Ultra-Precise Weighing
2. Weight Control: Load Cell Weighing
Accuracy up to ±0.001g!
Load-cell
Unlike traditional scale systems that may experience friction and rebound-related errors, load cells detect changes in electrical resistance caused by applied force, enabling ultra-precise measurements down to ±0.001g. This method offers far greater accuracy than conventional scales and ensures consistent precision across repetitive production cycles, significantly reducing the likelihood of defective products and maximizing operational efficiency. (Note: Depending on the decimal display settings of the touchscreen, ultra-fine weight values may be rounded up.)
Load Cell Measurement Method
① When a load is applied, the load cell’s strain gauge slightly deforms.
② This deformation causes a change in electrical resistance.
③ The digital weighing processor analyzes the resistance change.
④ It calculates the accurate weight.
⑤ The measured weight is corrected and displayed in real time via the touchscreen interface.
Pouch Support Stand
Minimizes vibration and external interference during powder filling, ensuring consistent weight detection by the load cell. Prevents pouch movement and maintains a fixed position for accurate weighing. Balanced load transfer supports uniform filling quality. Both sides can be easily detached and adjusted to match workflow needs.
Load Cell Height Adjustment
The base features tool-free adjustable knobs, allowing operators to easily set the optimal height for different pouch sizes or ergonomic working positions. This enhances usability and ensures precise weighing alignment.
Calibration (Weight Adjustment)
Ensures that the displayed weight matches the actual filled weight. Allows users to configure memory settings, decimal precision, tare values, and maximum weight, enabling high accuracy and consistency even under variable production conditions.
Simple Operation
with Full Touchscreen Control
Touchscreen System
Easy interface designed for anyone to operate
– 7-inch Color TFT LCD (800×480 resolution)
– Flexible weight setting from decimal units to 1g
– Maximum weight limit for precision and stability
– LED backlight for low power use and durability
– Inverter-free design reduces electrical noise
– 90 memory slots for product-specific presets
Touchscreen
Memory Function
Optimized Automatic Feeding
with Screw Conveyor
Stable Transfer Solution
for Heavy and Viscous Powders

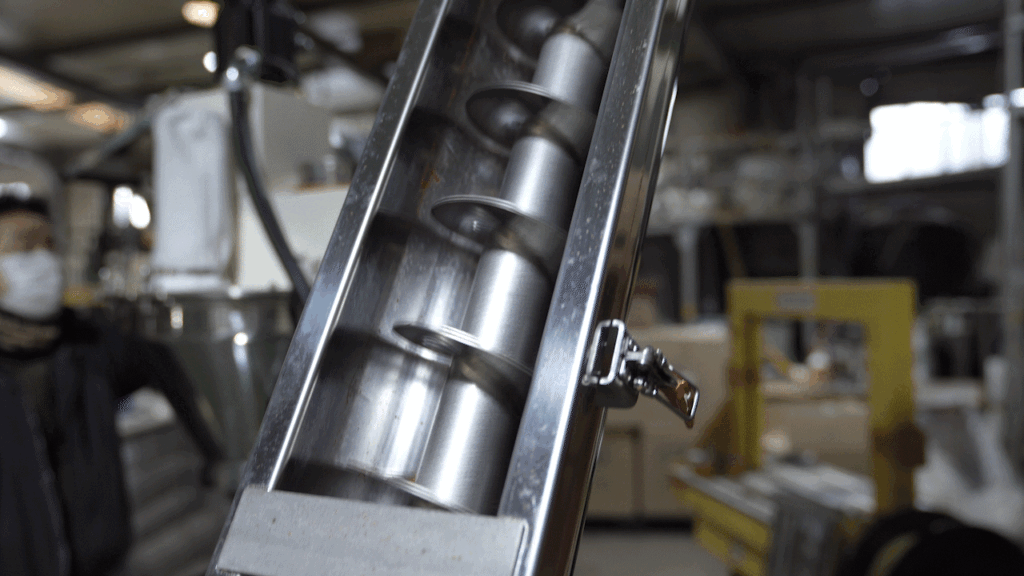

The screw conveyor is optimized for transferring heavy or viscous powders (e.g., flour, coffee powder, cement), providing a reliable alternative where vacuum feeders are less effective. Its rotating screw structure continuously feeds powder into the filler at a consistent rate. The control box wiring allows rotation direction adjustments for easier maintenance.
Screw Conveyor

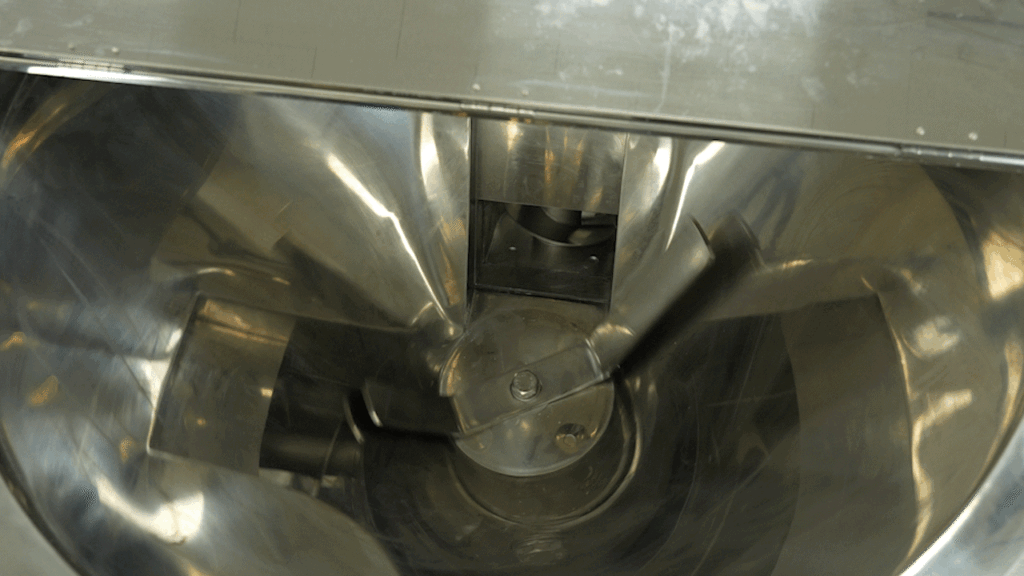

The internal agitator blades are synchronized with the hopper, loosening the powder before transfer to prevent clumping. This ensures smooth delivery with minimal powder damage, enhancing flow consistency and operational stability.
Sub-Hopper Agitator
The screw conveyor’s integrated agitator blades pre-loosen the powder to maintain flow uniformity before transfer. This minimizes raw material damage and ensures stable feeding, making it ideal for handling delicate powders.

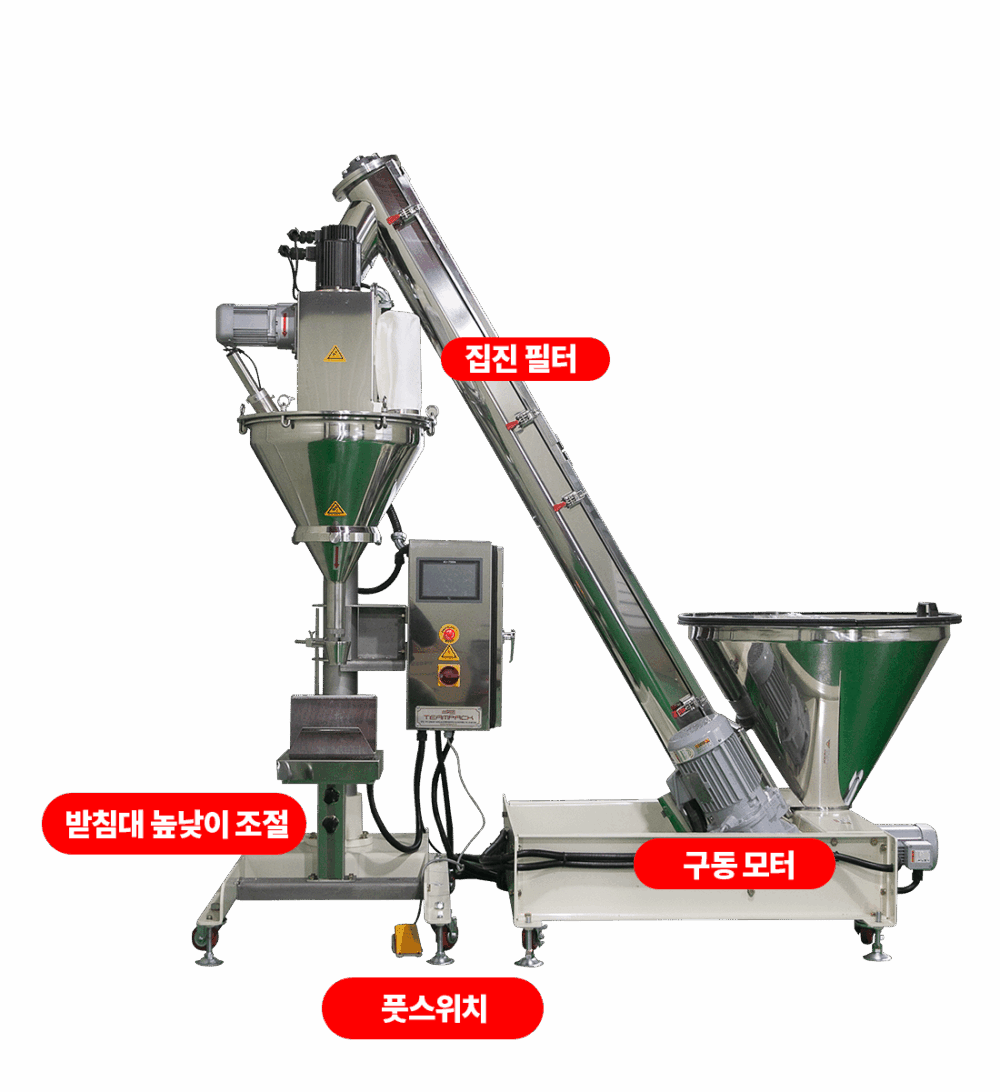

Easy-to-use
User-Friendly Design
Height Adjustable Stand
Aligns with
pouch size
Drive Motor
Screw rotation feeds
powder to filler
Foot Switch
One-touch
powder discharge
Dust Filter
Blocks dust
and moisture
Stainless 304
SUS-304
Change Parts
① For Powders: Optimized for medium-viscosity, high-density powders such as chili powder. (Standard diameter: Ø20 or customizable)
② For Granules: Specialized for free-flowing granules. The disk-type structure minimizes scattering and ensures even filling.
Integration and Upgrade with Various Devices
Band
Sealer
Pouch sealing with digital temperature controller
Optional – inkjet printer, solid ink printer
Vacuum Conveyor
Vacuum generation with sensor-based automatic control
Optional – inverter installation
Screw
Conveyor
Mechanical screw-feeding type, ideal for solid or sticky powders
Optional – capacity expansion
Sub
Hopper
Initial storage of powder, automatic transfer to hopper
Optional – capacity expansion
Explore More Products.
TAF5-101WM
분말충진기 기본형 (5kg 모델)
1회 포장 캐파 : 최대 약 5kg
TAF10-101WM
분말충진기 대용량 (10kg 모델)
1회 포장 캐파 : 최대 약 10kg
TAF20-201WM
분말충진기 대용량 (20kg 모델)
1회 포장 캐파 : 최대 약 20kg
TPVE-220TH
분말용 진공이송기 220 모델
1시간당 이송 능력 : 약 200~300kg
TPVE-300TH
분말용 진공이송기 300 모델
1시간당 이송 능력 : 약 300~600kg
TPVE-400TH
분말용 진공이송기 400 모델
1시간당 이송 능력 : 약 500~1,600kg
TPVE-500TH
분말용 진공이송기 500 모델
1시간당 이송 능력 : 약 800~2,200kg
TPSC-1944T
분말용 스크류 이송기
호퍼 용량 : 약 100L
제품 상세 규격
TAF5-101WM
Power
380V, 3-Phase
Max. Power Consumption: Approx. 2.4kW
Dimensions
TPVE-400TH
전력
220V 단상
최대 소비전력 약 15W
규격
